點焊機器人由機器人主體，計算機控制系統，示教盒和點焊焊接系統組成。為了適應靈活運動的要求，焊接機器人通常使用鉸接式工業機器人的基本設計，該機器人通常具有六個自由度：腰部旋轉，手臂旋轉，手臂旋轉，腕部旋轉，腕部擺動和腕部扭轉。驅動方式有兩種：液壓驅動和電動驅動。其中，電驅動器具有易于維護，能耗低，速度快，精度高，安全性好等優點，因此得到了廣泛的應用。點焊機器人根據教學過程中指定的動作，順序和參數執行點焊操作。該過程是完全自動化的，并且具有與外部設備進行通信的界面。該接口可用于接受上級主控制和管理計算機?？刂泼钇鹱饔谩?

應用

編輯

點焊機器人使用最廣泛的領域應該屬于車身裝配車間。 （見右圖）

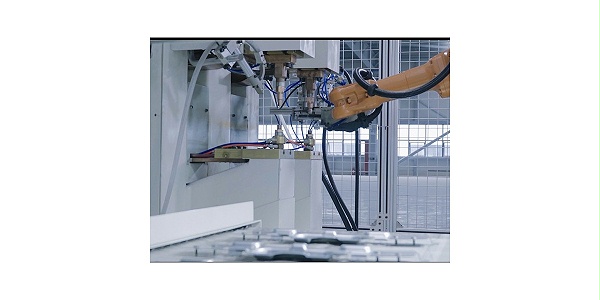

點焊機器人加工車身外殼（來源：KUKA）

技術特征

編輯

（1）技術綜合能力強。工業機器人和自動化技術集成和集成了多個學科，涉及多個技術領域，包括工業機器人控制技術，機器人動力學和仿真，機器人結構有限元分析，激光加工技術模塊化編程，智能測量，建模和先進制造技術，例如加工集成，工廠自動化和精細物流在技術上非常全面。

（2）廣泛的應用領域工業機器人和自動化設備是生產過程中的關鍵設備，可對于制造，安裝，測試，物流等生產環節，并廣泛應對于整車，汽車零部件，工程機械等。 ，軌道交通低壓電器，電力，集成電路設備，軍工，煙草，金融，醫藥，冶金，印刷出版等許多行業都有廣泛的應用。

（3）先進技術機器人集成了先進的制造技術，例如精度，靈活性，智能性和軟件應用程序開發。通過對過程的檢測，控制，優化，調度，管理和決策，增加產量，提高質量并降低成本。成本，減少資源消耗和環境污染是工業自動化的最高體現。

（4）技術升級工業機器人和自動化設備具備精加工，精加工和靈活生產等技術特征。它們是新一代的生產工具，可擴展動力機器和計算機之后人們的身體和智力。數字化，自動化，聯網和智能化的重要手段。 [1]
